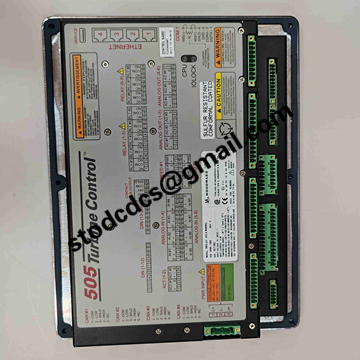

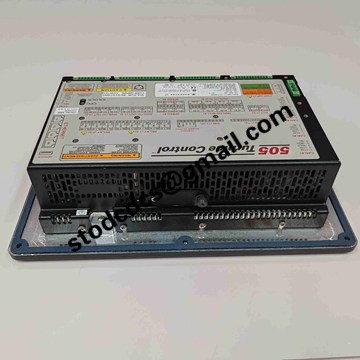

WOODWARD 8200-1302 servo position controller

WOODWARD 8200-1302 servo position controller
This Woodward 505D series controller features closed-loop position adjustment of turbine valves, stable maintenance and replacement
Product Features
1 Woodward original, used for turbine speed regulation and servo valve position control
2 built-in PID closed-loop algorithm, high valve positioning accuracy

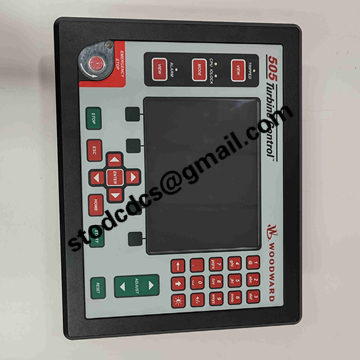

3. Comes with LCD screen buttons for local viewing of parameters and faults
4 Supports Modbus communication and can be connected to upper level systems
5 built-in fault self diagnosis, overspeed protection

Product Specifications
Model 1 8200-1302, servo position controller/digital speed controller
2 power supply DC18~32V, typical DC24V
3 channels of analog digital IO, collecting speed and valve position signals
4. Operating temperature -40 ℃~85 ℃, suitable for harsh working conditions
5-panel installation with event recording function

Application Areas
1 Steam turbine unit, speed and valve opening control
2 Gas turbine equipment, actuator position closed-loop adjustment
WOODWARD 8200-1302 is a specialized servo position controller for steam turbines, which controls speed regulating valves and is a commonly used spare part for maintenance of power generation equipment
