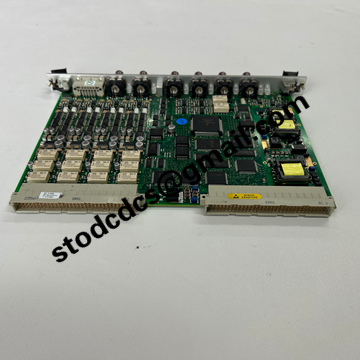

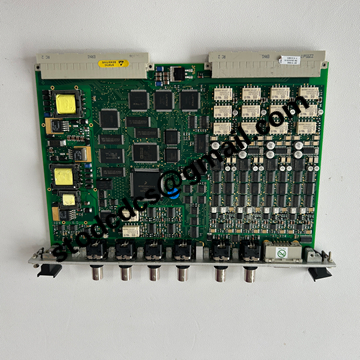

VIBRO-METER MPC4 200-510-078-115 Mechanical Protection Card

VIBRO METER MPC4 200-510-078-115 is a mechanical protection card for VM600 system, which is the core protection card for vibration displacement speed of rotating equipment.
Characteristics
1. 4 dynamic signals+2 speed channels, channel software configuration, compatible with vibration, displacement, and acceleration sensors
2. DSP real-time operation, supports order tracking, and can be used for amplitude and phase synchronization monitoring
3. The alarm threshold can adapt to the speed and support delay, hysteresis, and latch alarm logic
4. The BNC interface on the panel can output raw signals, making it convenient for on-site troubleshooting of sensor faults
5. Support hot swapping, rack 6U card, non-stop replacement and maintenance

parameter
1. Dynamic input ± 10V, bandwidth 0.1Hz-10kHz, 24VDC backplane power supply
2. Speed input supports multiple speed probes such as magneto electric and TTL
3、24bitADC， Measurement full range accuracy ± 1%
4. Working temperature -25~+65 ℃
5. VME bus, paired with IOC4 output relay alarm signal
Application
1. Vibration shaft displacement protection for steam turbine units and gas turbines
2. Monitoring and protection of compressor and large fan equipment status
3. Replacement and maintenance of spare parts for VM600 mechanical protection system
4. Maintenance of hardware faults in power plants and oil and gas rotating equipment
5. Technical upgrade accessories for DCS interlocking monitoring system of large units

When abnormal vibration readings, false alarms, or loss of speed signals occur, VIBRO METER MPC4 200-510-078-115 is the priority protection board component for inspection
