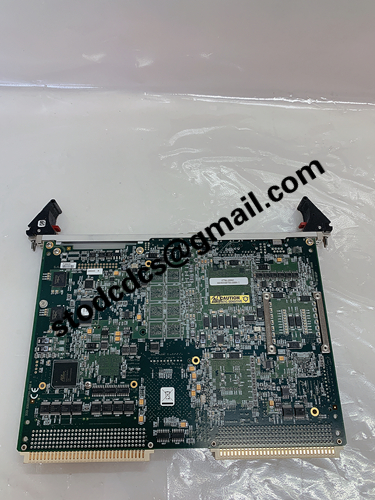

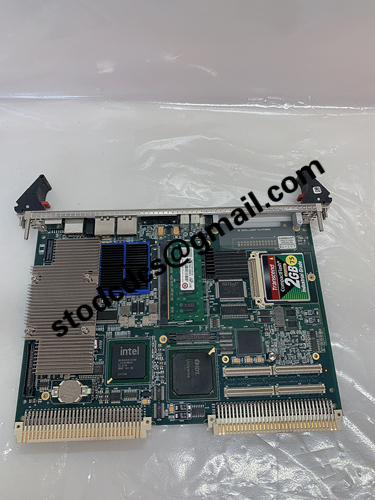

V7768-320001 Digital Expansion Module

GE V7768-320001 350-9301007768-320001 Digital Expansion Module
GE V7768-320001 is a Mark VI turbine control system VME bus single board computer with expandable digital signal processing capabilities, used for gas turbine and steam turbine control.
Product Features

1. VME bus architecture, high-speed and in rack I/O card communication
2. High performance processor, real-time execution of unit control and protection logic
3. Board reinforcement design, anti vibration, suitable for cabinet environment in power plants
4. Support PMC sub board expansion, expand digital signal channels
5. VME slot installation, easy disassembly and replacement, reducing downtime
Product application areas
6. Mark VI gas turbine and turbine main control calculation
7. Unit digital switch signal acquisition and logic processing
8. Core board of control system for large compressor units
9. Logic operation of power station unit protection interlock
10. Replacement of spare parts for old GE Mark VI system V7768
11. Control circuit verification and debugging after major overhaul of the unit
12. Power equipment alarm and safety protection processing
13. Monitoring and supporting equipment for industrial heavy-duty rotating equipment
14. Hardware expansion and upgrade of gas turbine control system
15. Turbine unit interlock protection unit matching

The GE V7768-320001 digital expansion module serves as the VME main control board, processing unit digital signals, executing control and protection programs, and ensuring the safe and stable operation of the turbine unit.
