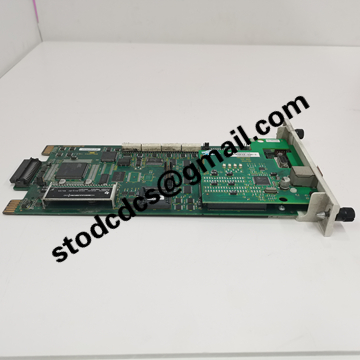

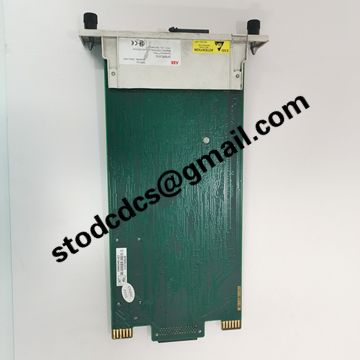

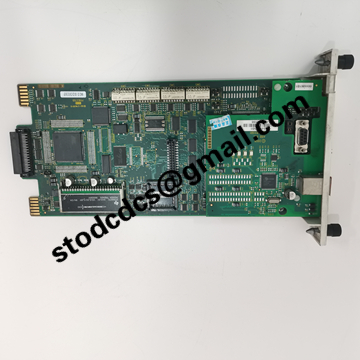

SPBRC410 Digital Output Module

SPBRC410 is a Symphony Plus system process bridge controller, not a regular IO module. It executes control logic, manages I/O subracks, and has a Modbus TCP communication interface.
Characteristics
1. 32-bit ColdFire processor, capable of processing a large number of functional blocks and achieving closed-loop process calculations
2. Support dual machine redundant hot backup, paired with NRC410, fast fault switching speed
3. Compatible with Harmony and S800 series I/O, expandable with multiple digital analog channels
4. On board hardware diagnosis, indicator lights quickly locate CPU, bus, and network faults
5. Rack card insertion structure, supports hot swapping, maintenance does not require a complete shutdown

parameter
1. Main frequency 256MHz, 64MB RAM, 2MB NVRAM, power down to save data
2. 1 channel 10/100M Ethernet, Modbus TCP protocol, and also has a serial port debugging port
3. Module powered by 24VDC, with a total power consumption of less than 15W
4. Working temperature 0-60 ℃, protection level IP20
5. Compatible with Symphony Plus, INFI90, 800xA system backplanes
Application
1. Thermal power and chemical DCS system main control bridge unit
2. Logic processing of auxiliary control systems for power plant boilers and steam turbines
3. Replacement and maintenance of spare parts for ABB Symphony system
4. Process cabinet I/O substation data exchange
5. Old DCS system hardware renovation and maintenance

When system I/O is lost, logic is not executed, or network communication is interrupted, SPBRC410 is the controller component that is prioritized for verification.
