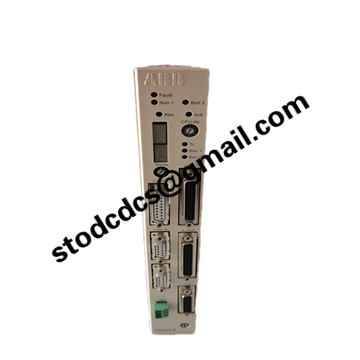

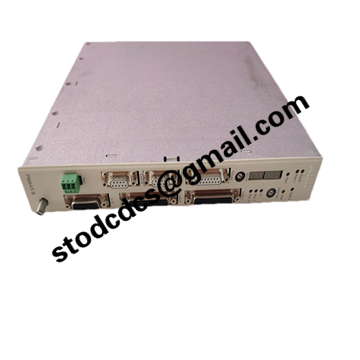

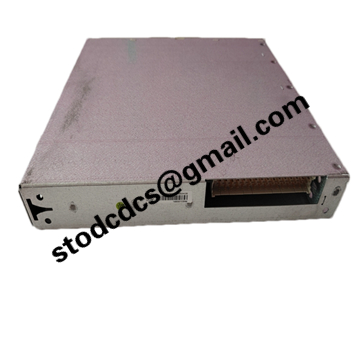

PM645B 3BSE010535R1 processor module

ABB PM645B 3BSE010535R1 is an Advant Controller 160 series DCS processor module, the core computing unit of the entire system, and is an old industrial control spare part.
Characteristics
1. Supports dual Profibus DP bus, can be configured redundantly, and improves system reliability.
2. Built in program battery backup, power off to save control programs and process data.
3. On board hardware self diagnosis, LED status lights quickly locate CPU and bus fault points.
4. Rack plug-in card structure, easy to disassemble and replace on site.
5. Adapting to complex working conditions in factories, it can operate continuously for a long time without interruption.

parameter
1. 24VDC module power supply, rack backplane bus interaction.
2. Dual Profibus DP communication, supporting long-distance fiber optic transmission.
3. The program memory meets the requirements of medium-sized process control logic.
4. Working temperature 0-60 ℃, protection level IP20.
5. Compatible with AC160 system backplane rack.
Application
1. The main control unit of the old DCS system for chemical and power industries.
2. Logical operation processing of factory process control system.
3. Replacement and repair of spare parts for ABB Advant system.
4. Hardware maintenance of large industrial old equipment.
5. Technical upgrade and replacement of control system for imported old units.

When the system is shut down, program errors occur, or bus communication is interrupted, PM645B 3BSE010535R1 is the processor component that needs to be prioritized for troubleshooting.
