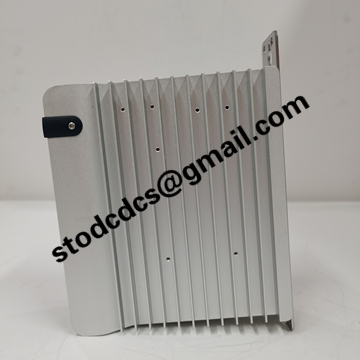

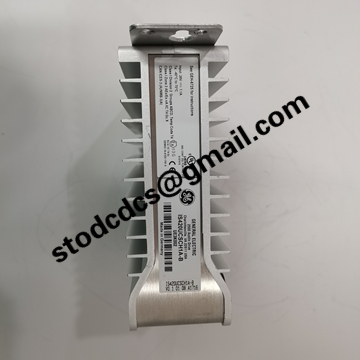

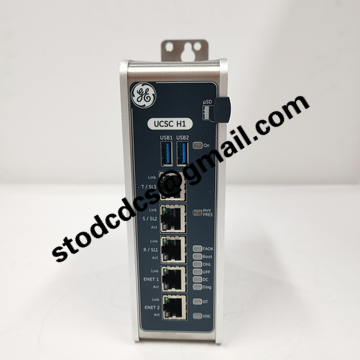

IS420UCSCH1A-B Controller Module

The IS420UCSCH1A-B controller module belongs to the Mark VIe turbine control system and is often used in on-site gas turbine units.
Characteristics
1. Equipped with QNX real-time system, fast computing response, suitable for high-speed control of the unit
2. It supports TMR the third mock examination redundancy, and can run in both single and dual computer modes with strong fault tolerance
3. Equipped with pulse, analog, and digital channels, it can directly interface with on-site sensors
4. Multi port redundant communication, stable interaction between IONet bus and I/O module
5. Industrial reinforced casing capable of withstanding harsh environments such as high temperatures and electromagnetic interference in power plants

parameter
1. Four core processor with ECC memory to ensure data error free operation
2. Multiple Ethernet interfaces on the panel, supporting Predix cloud monitoring
3. Comes with 2 Hall pulse inputs, 2 analog inputs, and 4 digital I/O inputs
4. Wide temperature operation to adapt to temperature differences in the power station control cabinet
5. Independent module design, capable of running independently without the need for a backplane
Application
1. Main control of gas turbine and steam turbine
2. Automation of Combined Cycle Generator Sets
3. Interlocking control of key processes in oil and gas plants
4. Replacement of spare parts for the old Mark VIe system in the power station
5. High reliability industrial process control projects
IS420UCSCH1A-B is the core control card of the unit, which requires high stability and is commonly used for maintenance and replacement in power stations
