IS200TRLYH1BGF frequency converter

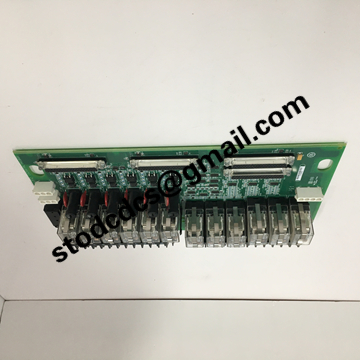

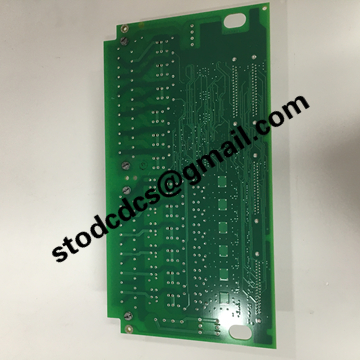

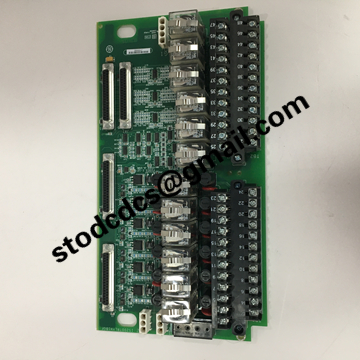

IS200TRLYH1BGF is a TRLY relay output terminal board for Speedtronic Mark VI/VIe turbine control system, responsible for driving unit interlocking and alarm circuit relays.
Product Features
1. Triple redundant TMR architecture, with 2 out of 3 voting for the three channel signal, ensures that a single point of failure will not cause misoperation and meets the safety protection requirements of the unit
2. Equipped with multiple sets of electromechanical relays, it can drive on-site solenoid valves, sound and light alarms, and remote switch signals
3. Support relay coil status diagnosis, detect coil breakage, short circuit, and contact welding faults, and quickly report alarms
4. Electrical isolation between channels to resist strong electromagnetic interference from power plants and prevent the spread of cross channel faults
5. Cabinet slot installation with three anti coating, suitable for power station control cabinet environment, easy replacement of spare parts

Product Specifications
1. Model: IS200TRLYH1BGF
2. System: GE Mark VI/Mark VIe
3. Type: Relay output terminal board TRLY
4. Security architecture: TMR triple redundancy, SIL3
5. Function: Interlock signal output, relay drive, coil and contact diagnosis
Application Areas
1. Alarm and interlock circuit of gas turbine control cabinet
2. Auxiliary equipment switch control for steam turbine units
3. ESD emergency shutdown system for power plant turbine units
4. Replacement of Mark VIe control system maintenance spare parts
5. Renovation of control system for old steam turbine in power station
The IS200TRLYH1BGF relay terminal board is a commonly used spare part for the operation and maintenance of the interlocking circuit of power plant turbine units.
