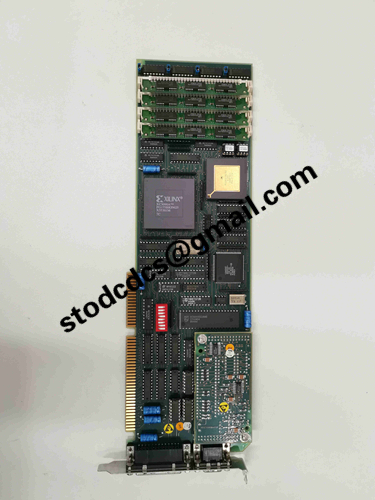

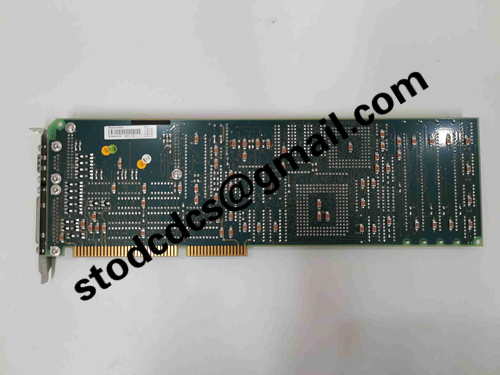

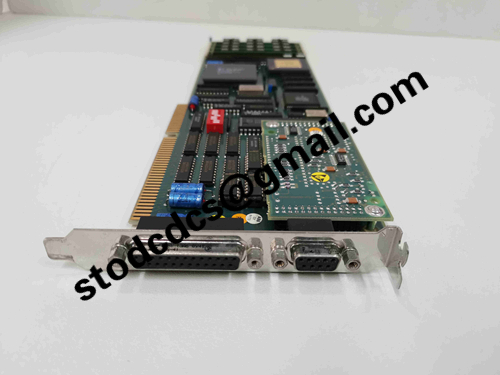

DSPU131 3BSE000355R1 interface board

DSPU131 (3BSE000355R1) is an interface board in the Advant MA200 system, used to relay signals in the DCS rack and act as a data bridge between modules.
Characteristics
1. Comes with 32 digital channels and 8 analog channels, with strong on-site signal access capability
2. Onboard DSP chip, with fast real-time signal processing speed and low latency
3. The anti-interference of the board is solidly done, making it less prone to garbled codes in strong electrical environments such as power plants
4. Supports AT bus for easy integration with other functional boards in the rack
5. The board comes with a built-in diagnostic indicator light, which allows for easy visibility of the channel status during maintenance

parameter
1. Equipped with 32-bit DSP, with a main frequency of 200MHz
2. 256KB RAM and 512KB Flash storage
3. Supports multiple communication methods such as RS485 and Ethernet
4. Working temperature -25 ℃~70 ℃, the cabinet can withstand both high and low temperatures
5. Standard rack card, directly inserted into the slot for installation
Application
1. ABB Advant old DCS system signal interaction
2. Power plant process control cabinet signal acquisition and transmission
3. Expansion and renovation of DCS system in chemical plant
4. Replacement of spare parts for the original MA200 control system
5. Industrial process analog digital signal conversion
DSPU131 is a key interface board for the old ABB DCS, and many power plants use this spare part for renovation and maintenance.
