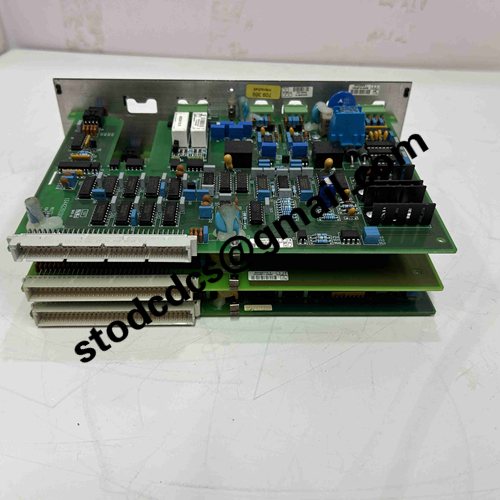

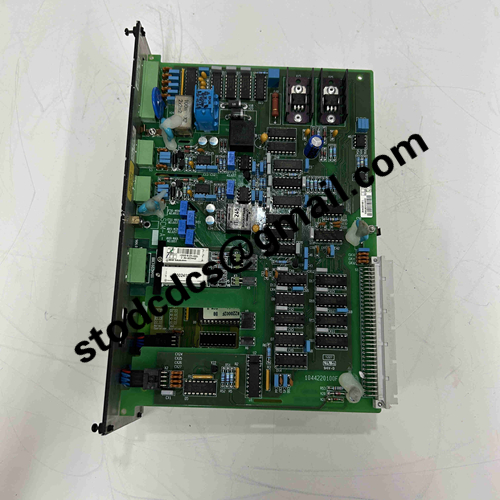

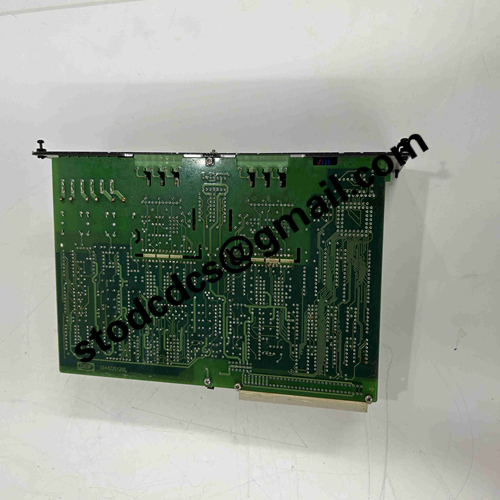

DEIF SCM-1 adapter module

This DEIF SCM-1 synchronous measurement module is the core card responsible for grid sampling inside the DGU2 chassis, and is easy to replace on site
Product Features

1. High precision collection of voltage, current, and frequency, specifically designed for automatic synchronization and grid connection of generators
2. Built in unit protection logic, can directly trigger protection in case of reverse power, overvoltage, overload faults
3. Output signal to control speed and voltage regulation, meeting the phase and frequency matching requirements during parallel operation
4. The panel comes with a status indicator light, which can clearly show the running and fault status at a glance
5. Plug it into the DGU2 rack and communicate with the CM-2 main control module through the backplane bus
Product Specifications
6. Model: DEIF SCM-1
7. Type: Synchronous Measurement Multi functional Module
8. Power supply 24VDC, supplied by the rack backplane
9. Support 40~70Hz power frequency measurement
10. Industrial temperature range -25 ℃~+70 ℃
Product application areas
11. Grid connected control of ship power station generator sets
12. Multi engine parallel system of diesel generator set
13. Synchronous monitoring of factory backup power cabinet
14. Offshore platform power generation protection circuit
15. DEIF Delomatic3 old system maintenance replacement
In general, DEIF SCM-1 is a specialized functional module spare part used by generator sets for measuring electricity and synchronizing with the grid
