5SHX1445H0001 3BHL0003391P0101 3BHB003230R0101 thyristor module

5SHX1445H0001 3BHL0003391P0101 3BHB003230R0101 thyristor module

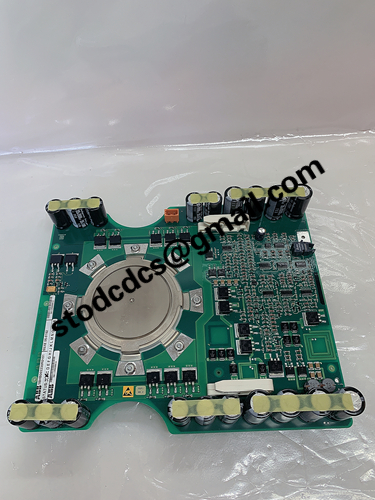

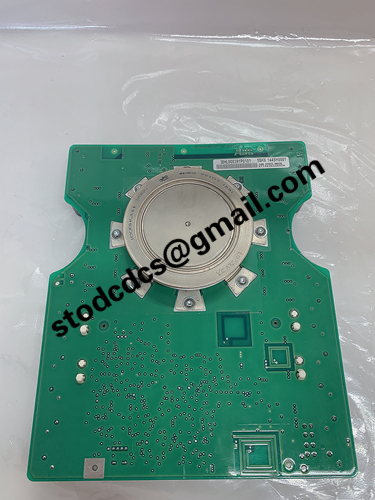

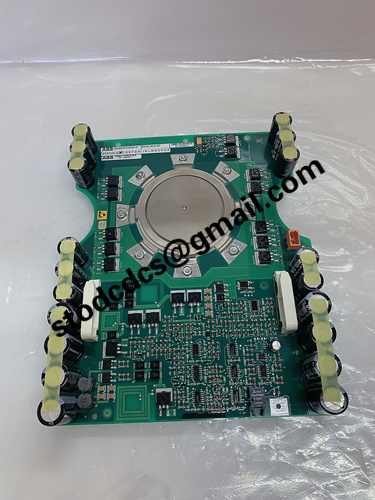

ABB 5SHX1445H0001 is an IGCT integrated gate commutated thyristor power module for ACS1000 medium voltage frequency converter, used as a high-power switching device in the main circuit.
Product Features

1. High voltage and high-power design, low conduction loss, high energy conversion efficiency
2. Fast switch response speed, suitable for medium voltage variable frequency speed regulation working conditions
3. Integrate gate driver unit to simplify power circuit wiring
4. Crimp type packaging, good heat dissipation effect, controllable temperature rise during long-term operation
5. Modular assembly, easy on-site disassembly and replacement, reducing downtime
Product application areas
6. ABB ACS1000 medium voltage frequency converter power main circuit
7. Power conversion unit for high-power motor drive device
8. Metallurgical high-power transmission frequency conversion equipment matching
9. Wind power converter power switch component
10. Replacement of IGCT spare parts for old ACS1000 system
11. Power circuit verification and debugging after unit maintenance
12. Drive system for rolling mill and mine hoist
13. High power water pump and fan frequency conversion transformation
14. Overhaul and replacement of industrial high-power converter equipment
15. Power unit matching for medium voltage transmission control system

ABB 5SHX1445H0001 3BHL0000391P0101 3BHB003230R0101 thyristor module serves as the main power switch to achieve AC/DC energy conversion and drive stable operation of high-power motors.
