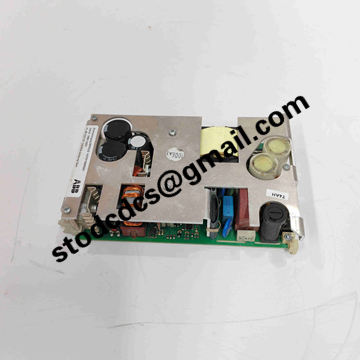

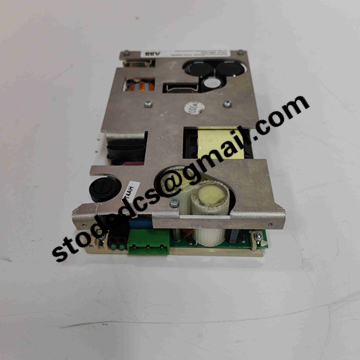

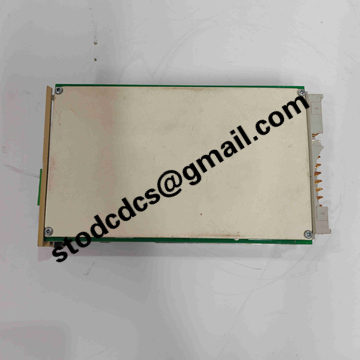

560PSU02 1KGT011900R0001 control module

560PSU02 (1KGT011900R0001) is a dedicated power module for the RTU560 rack, which supplies power to the entire board in the substation remote control equipment.
Characteristics
1. Support dual module parallel redundancy, where one module breaks and the other automatically takes over all the load
2. Two isolated outputs, 5V for the board chip and 24V for the on-site signal circuit
3. Equipped with fault alarm contacts, it can directly send background alarms when the power supply is abnormal
4. The input and output are electrically isolated, which can block the interference and surge of the substation
5. Plug in rack installation, convenient on-site maintenance and disassembly

parameter
1. DC input 48~220V, compatible with substation battery pack
2. The total output power is 85W, and it can carry up to 8 communication boards
3. Working temperature -20 ℃~60 ℃, stable high and low temperature environment inside the cabinet
4. Built in full protection against reverse connection, short circuit, and overvoltage
5. Compatible with 560MPR03 and 560SFR02 subracks
Application
1. Power supply for the RTU560 remote control device in the substation
2. Power supply for communication rack of distribution automation system
3. Power plant auxiliary control remote acquisition cabinet
4. Replacement of power spare parts for old RTU560 equipment
5. High reliability power supply scenarios for power monitoring
560PSU02 is the power supply core of the remote control device, which is often used for substation renovation and spare parts replacement.
