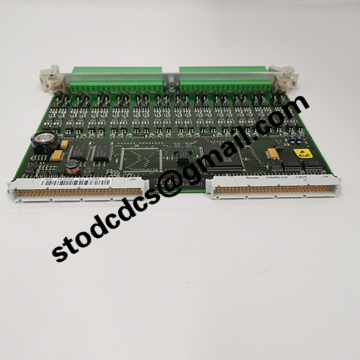

500BIM01 1MRB150024R0002 Controller Module

500BIM01 1MRB150024R0002 is the switch input module of REB500 busbar protection system.
Product Features
1. Collect switch signals such as the positions of multiple circuit breakers and isolation switches
2. Optoelectronic isolation input to suppress strong interference in substations
3. Channel self-test, real-time reporting of signal abnormalities to CPU
4. Rack slot installation, compatible with REB500 series cards
5. Wide temperature operation, suitable for high voltage protection cabinet environment
Product Specifications
1. Model: 500BIM01 1MRB150024R0002
2. Type: Switch input control card
3. Adaptation: ABB REB500 busbar protection system
4. Function: Collecting switch status and transmitting digital signals
5. Power supply: 24VDC
Application Areas
1. High voltage substation busbar protection cabinet
2. Replacement of spare parts for relay protection equipment
3. Renovation of power protection system
Substation busbar protection switch signal acquisition and operation, this 500BIM01 is a digital spare part for REB500
