500B0M01 1MRB150023R0002 Control Card

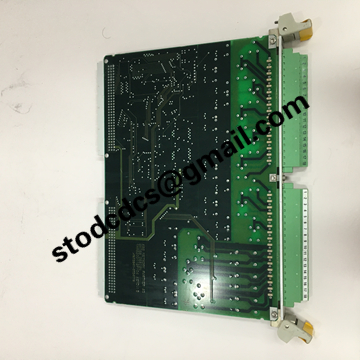

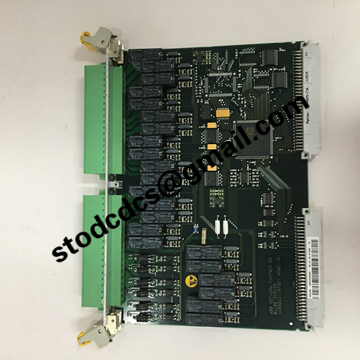

500B0M01 1MRB150023R0002 is a 500 series relay output control card that processes switch output, drives on-site solenoid valves, contactors, and alarm circuits, and is a spare part for discontinued rack boards.
Characteristics
1. Multi channel relay contact output, large contact capacity, can directly drive high-power actuators on site
2. Channel level fault diagnosis, board indicator light quickly locates channel overload and contact faults
3. Built in EMI protection to resist electromagnetic interference inside the cabinet and reduce misoperation
4. Backplane bus completes data exchange and adapts to ABB’s old DCS rack backplane
5. Plug in board structure, convenient on-site maintenance and disassembly

parameter
1. Relay output channel, maximum load capacity of 250VAC/10A for contacts
2. Module 24VDC backplane power supply, overall power consumption within 8W
3. Working temperature 0-55 ℃, protection level IP20
4. Compatible with 500 series system backplane rack
5. Feedback channel fault status to the upper system
Application
1. Switching output control of chemical power DCS system
2. Valve, pump, fan relay circuit drive
3. Hardware output of unit interlocking alarm circuit
4. ABB500 series system spare parts replacement and maintenance
5. Hardware upgrade and replacement parts for old process cabinets

When there is no output action or relay false triggering alarm on site, 500B0M01 1MRB150023R0002 is the priority control card component to be checked.
