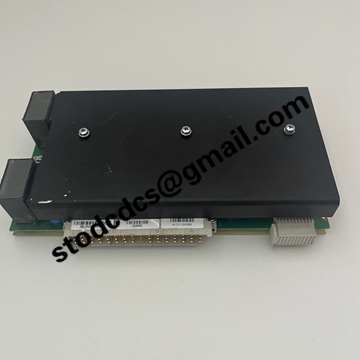

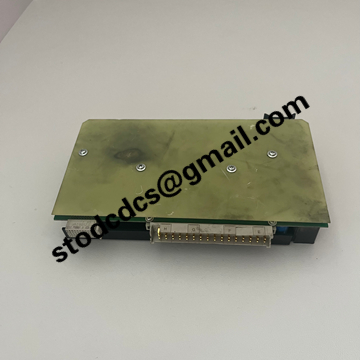

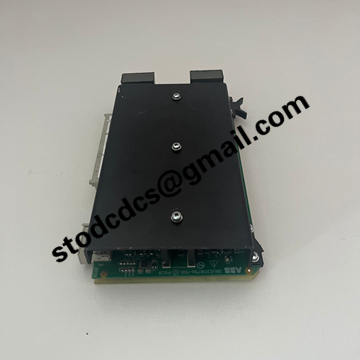

3BUS208796-501 Communication Module

 3BUS208796-501 is a DCS system backplane bus communication module, responsible for high-speed data exchange between the controller and IO cards, and is a rack plug-in spare part.
Characteristics
1. High speed backplane bus transmission ensures real-time interaction of control instructions
2. Support bus redundancy, automatic switching for single link faults
3. Onboard fault indicator light, quickly determine bus communication status
4. Electromagnetic filtering reinforcement, suitable for complex electromagnetic working conditions in factories
5. Hot swappable rack insertion, maintenance and replacement without stopping the machine, complete power-off

parameter
1. Compatible with ABB 800xA and AC800M control systems
2. Backplane bus communication speed 10Mbps
3. Module 24VDC power supply
4. Working temperature 0-60 ℃
5. Standard rack slot installation
Application
1. ABB DCS control system rack bus communication
2. Hardware of chemical and power process control systems
3. Replacement of spare parts for control cabinets in large-scale automated production lines
4. Maintenance and Repair of Industrial Control System Malfunctions
5. Importing old equipment for technological transformation and replacement of parts

When the system reports a bus interruption or IO card loss, 3BUS208796-501 is the communication component that needs to be prioritized for troubleshooting.
